Copy GPT disk or partition for disk migration and protection

  > Products > Partition Manager > Copy GPT disk or partition for disk migration and protection

2016-09-28 13:58:13 Posted by Daisy to EaseUS Partition Manager

Professional partition manager freeware from EaseUS software makes it easy to copy GPT disk/partition, replace old small GPT disk with a new larger one, and even backup GPT disk without reinstallation under Windows 10/8/7/XP/Vista etc.

Advantages of GPT disk

GPT is the abbreviation of GUID Partition Table. The widespread MBR partitioning scheme, dating from the early 1980s, imposed limitations which affected the use of newer hardware. Intel therefore developed a new partition-table format in the late 1990s as part of what eventually became UEFI. The GPT as of 2010 forms a subset of the UEFI specification.

Compared with MBR disk, GPT disks can grow to a very large size. The number of partitions on a GPT disk is not constrained by temporary schemes such as container partitions as defined by the MBR Extended Boot Record (EBR). In theory, a GPT disk can be up to 128 logical blocks in length. Logical blocks are commonly 512 bytes in size.

The maximum partition (and disk) size is a function of the operating system version. Windows XP and the original release of Windows Server 2003 have a limit of 2TB per physical disk, including all partitions. For Windows Server 2003 SP1 Windows XP x64 edition, and later versions, the maximum raw partition of 18 exabytes can be supported. (Windows file systems currently are limited to 256 terabytes each.)

How to copy GPT disk?

The Windows built-in disk management provides limited features for GPT disk management. Disk Copy is a significant feature for backup and migrating to new hard drive. But it is impossible to copy GPT disk with Windows Disk Management. So, a third party partition manager software like EaseUS Partition Master is necessary to perform hard disk copy or copy partition and manage GPT disk.

1. Download EaseUS Partition Master and install it.

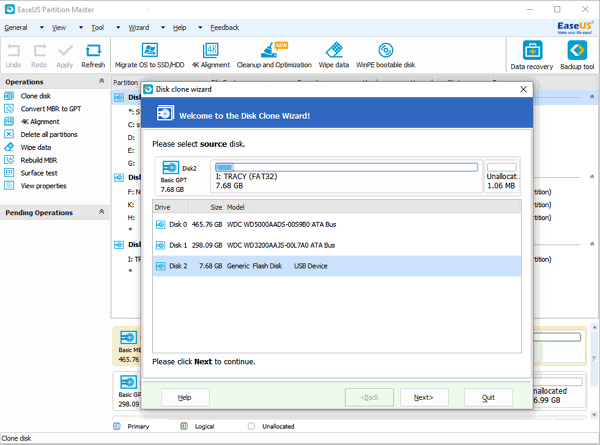

After that, launch EaseUS Partition Master. Select Wizard -> Clone disk wizard -> Copy disk. And then select the GPT hard disk you want to copy.

Copy GPT disk

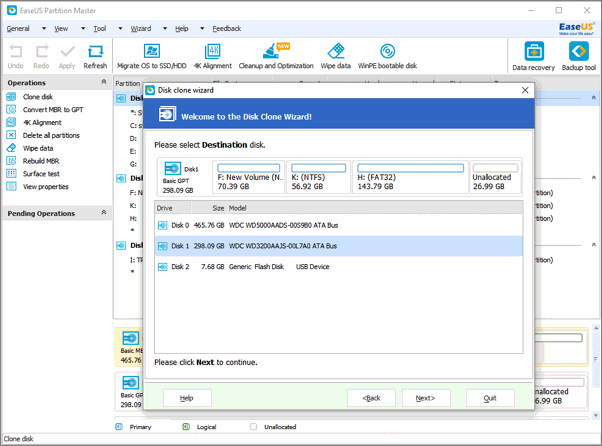

2. Choose the destination disk.

Choose destination disk

Then the wizard will ask you to delete all partitions on your destination disk

Delete all partitions on the destination disk

You also can edit the disk map for the destination disk, like resize partition size.

Resize/Move partition

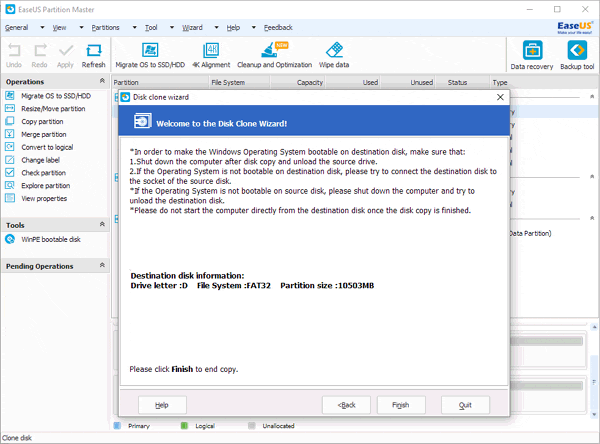

3. Make sure all the information before copy.

Check copy information

4. Disk copy finished, the two disks are 100% identical to each other.

How to copy GPT partition?

Copy a partition on a GPT disk is easy by the help of EaseUS Partition Master. Just follow these steps:

1. Select Wizard -> Copy partition wizard. And then select the GPT partition you want to copy.

Start the GPT disk copy tool

2. The program will check the properties of the partition for a successful copy.

3. Choose an unallocated space as the destination for GPT partition copy.

Choose destination to copy GPT partition

4. You can edit the GPT partition before copy.

Edit the GPT partition before copy

5. You will have a partition 100% identical to the original one on the destination disk.
