How to extend system partition on Windows Server 2003?

  > Products > Partition Manager > How to extend system partition on Windows Server 2003?

2016-10-31 15:01:19 Posted by Judie to Resource

Summary:
How to extend system partition on Windows Server 2003? Here we'll guide you to extend system partition or C drive on Windows Server 2003 with Diskpart command and EaseUS Partition Master Server Edition. Simple and easy methods will help you extend Windows Server 2003 system partition with ease.

Question: I am using Windows Server 2003. However, the Operating System Disk Manager will not allow me to extend system partition. Unfortunately, Microsoft Partner Support says I can only extend a Windows Server 2003 system partition by reformatting the drive and reinstalling the Windows Server 2003 Operating System or turning to a third-party solution. But I am not told which third-party solution I may use. Any ideas?

Answer: Tow methods will help you fix this problem:

1. Extend system partition on Windows Server 2003 with diskpart command from bootable disk.
2. Extend system partition on Windows Server 2003 with EaseUS Partition Master Server Edition.

If you are facing the same or a similar problem as above listed, you can selectively follow either one method to extend Windows Server 2003/2012/2016 etc system partition with ease now.

Method 1. Free extend system partition on Windows Server 2003 with Diskpart command

Diskpart.exe is a text-mode command interpreter that enables you to manage objects (disks, partitions, or volumes) by using scripts or direct input from a command prompt. Before you can use diskpart.exe commands on a disk, partition, or volume, you must first list and then select the object to give it focus. When an object has focus, any Diskpart.exe commands that you type act on that object.

You can only give focus to a partition on the selected disk. When a partition has focus, the related volume (if any) also has focus. When a volume has focus, the related disk and partition also have focus if the volume maps to a single specific partition. If this is not the case, then focus on the disk and partition is lost.

Disk Management Tool

  • Input "Diskpart" in the Search Bar, and click "OK" to enter the Diskpart utility.

If there is a contiguous unallocated space behind system partition, you can follow below steps:

  • Input "list disk" command, and press "Enter". Then, all of the disks will be listed.
  • Input "select disk x" command to select the target disk, and then press "Enter".
  • Input "list partition" and press "Enter". Then, all the partitions will be listed.
  • Select the partition needs to be extended by inputting "select partition x" and pressing "Enter".
  • Input "Extend" command, and press "Enter".
  • Input "Exit" to leave the Diskpart window.

If here is no unallocated space right behind system volume, follw below sptes to you have to delete the adjacent drive to get an unallocated space by inputting the commands:
"list disk" + hit Enter > "select disk x" > "list partition" + hit Enter > "select partition y" + hit Enter > "delete partition" + hit Enter > "select partition x" + hit Enter > "extend" + hit Enter > "exit".

Tips: 1. The system volume can only be extended by running Diskpart.exe from a command line by bootable CD.

2. To extend system partition on Windows Server 2003, there must be some unallocated space behind the system partition. Otherwise, you cannot extend system partition with diskpart command, so a third-party server partition software is needed.

Method 2. Extend system partition on Windows Server 2003 with EaseUS Partition Master Server Edition

To extend system partition on Windows Server 2003, we recommend you to use EaseUS Partition Master Server Edition. It is the best value server partition software to partition server disk for IT administrators. It manages Windows Server quickly and safely. You may perform basic and advanced partition operations on your Server without data loss, including: Resize and Move partitions, Copy Partition, Copy Disk, Copy Dynamic Volume, Create and Delete partitions, Format partitions, Convert partitions, Split partition, Merge partitions, Explore partitions, Hide and Unhide partitions, Set active partition, etc. Changes of server partition can be previewed before applying to hard disk and all data is completely protected during any operation.

The most important feature of extending system partition on Windows Server 2003 by EaseUS Partition Master Server Edition is no data loss, but we still suggest you back up the server when you decide to extend system partition on Windows Server 2003 in case of unexpected shutdown or any other hardware failure.

Steps to extend system partition on Windows Server 2003

1. Launch EaseUS Partition Master Server Edition.

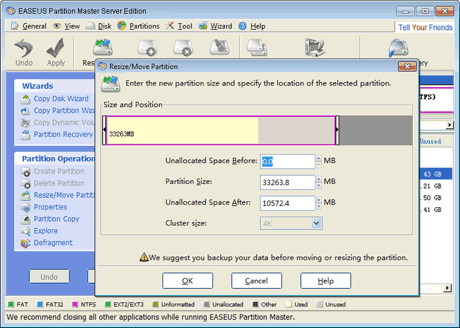

2. Right click the partition, select "Resize/Move partition" and drag the partition handle leftwards to resize it. Then there will be unallocated space.

Resize data partition on Windows Server 2003

3. Move the drive rightwards to let the unallocated space be behind the system partition (C: drive) and click OK.

Move Windows Server 2003 data partition

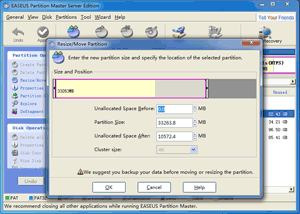

4. Right click the system partition (C: drive) and select "Resize/Move partition", drag the partition handle rightwards to extend system partition (C: drive).

Extend system partition Server 2003

5. Click Apply.
